QESPL TL5023-10 Hydraulic Luffing Tower Crane
Original price was: ₹21,000,000.00.₹19,500,000.00Current price is: ₹19,500,000.00.
DOWNLOAD SPECIFICATION
| Specification | Details |
|---|---|
| Brand | QESPL |
| Model | TL5023-10 |
| Crane Type | Hydraulic Luffing Tower Crane |
| Maximum Capacity | 10 Ton |
| Maximum Jib Length | 50 Meter |
| Tip Load | 2.3 Ton @ 50m |
| Minimum Working Radius | 4.7m – 5.6m |
| Power Supply | 380V (±5%) / 50Hz |
| Power Consumption | 90 KVA |
| Slewing Speed | 0 – 0.7 r/min |
| Rope Length | 560m / 750m |
| Mast Type | L46A1 |
| Hoisting Speed | 4.5 – 90 m/min |
| Load Capacity Range | 2.5 Ton – 7.5 Ton |
| Applications | High-rise Buildings, Metro Projects, Infrastructure, Commercial Towers |
Product Specifications
QESPL TL5023-10 Hydraulic Luffing Tower Crane – 10 Ton Capacity
The QESPL TL5023-10 Hydraulic Luffing Tower Crane is a premium heavy-duty lifting solution designed for high-rise and space-restricted construction projects. Manufactured for superior performance, this hydraulic luffing crane delivers excellent lifting efficiency, high load capacity, and smooth operation for modern infrastructure and commercial developments.
With a maximum lifting capacity of 10 Ton and jib lengths up to 50 meters, the TL5023-10 is ideal for metro projects, data centers, industrial plants, commercial towers, and urban construction sites where reduced swing radius is essential.
Quality Equipment & Solutions Pvt Ltd (QESPL) offers this advanced luffing tower crane with reliable technical support, project consultation, and equipment solutions for construction companies across India.
Key Features
- Maximum lifting capacity of 10 Ton
- Jib length up to 50 Meter
- Hydraulic luffing system for compact site operation
- Smooth and efficient hoisting performance
- Heavy-duty mast structure for enhanced stability
- Suitable for high-rise and congested urban projects
- Energy-efficient and reliable performance
- Advanced safety and operational controls
Technical Specifications
| Specification | Details |
|---|---|
| Brand | QESPL |
| Model | TL5023-10 |
| Crane Type | Hydraulic Luffing Tower Crane |
| Maximum Capacity | 10 Ton |

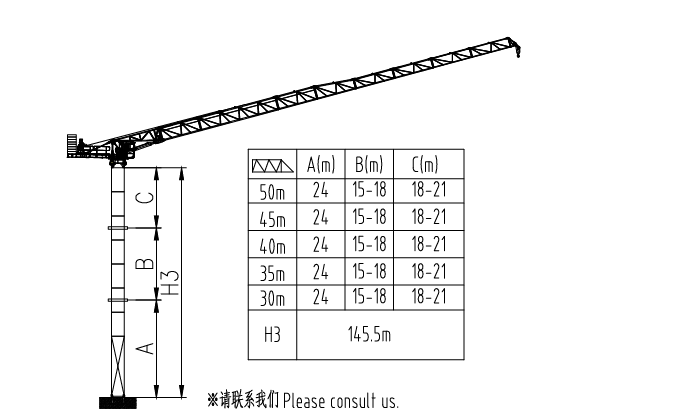

| Maximum Jib Length | 50 Meter |

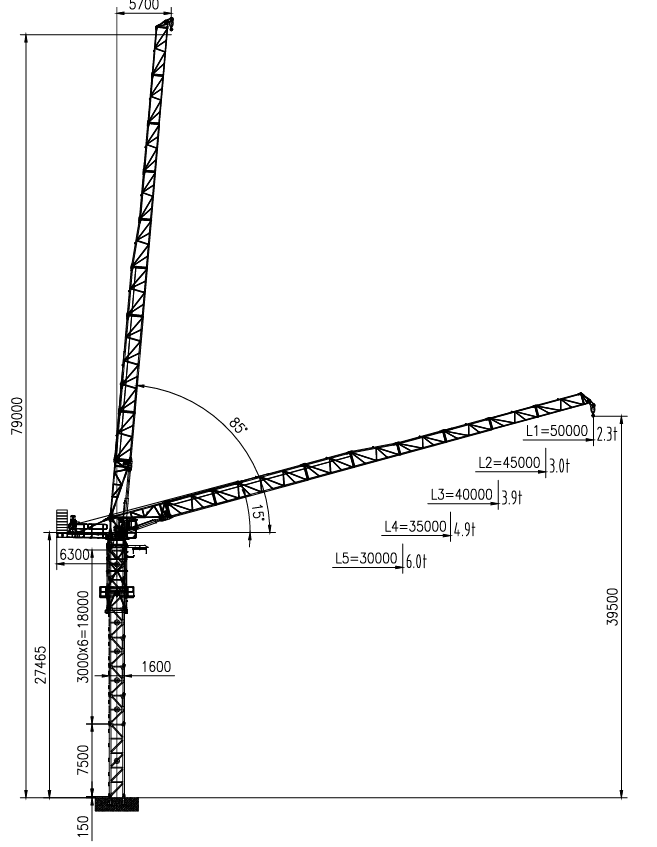

| Tip Load | 2.3 Ton @ 50m |
| Minimum Working Radius | 4.7m – 5.6m |
| Power Supply | 380V (±5%) / 50Hz |
| Power Consumption | 90 KVA |
| Slewing Speed | 0 – 0.7 r/min |
| Rope Length | 560m / 750m |

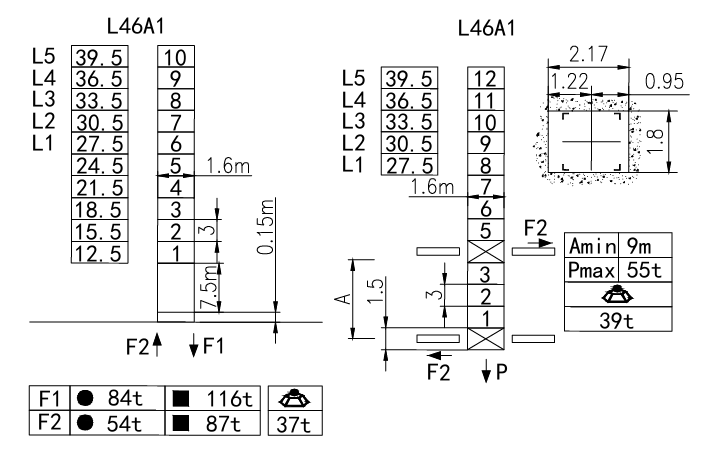

| Mast Type | L46A1 |
Hoisting Performance
| Hoisting Speed | Load Capacity |
|---|---|
| 4.5 – 90 m/min | 2.5 Ton |
| 4.5 – 60 m/min | 3.75 Ton |
| 4.5 – 45 m/min | 5 Ton |
| 4.5 – 30 m/min | 7.5 Ton |
Applications
- High-rise building construction
- Metro rail projects
- Commercial towers
- Industrial construction
- Infrastructure projects
- Data center projects
Why Choose Quality Equipment & Solutions Pvt Ltd?
Quality Equipment & Solutions Pvt Ltd (QESPL) provides reliable construction equipment solutions with a focus on performance, safety, and project efficiency. We offer tower cranes, lifting equipment, spare parts, technical support, and project consultation services to meet modern construction requirements.
| Brand |
QESPL |
|---|---|
| Machine |
Luffing Jib Tower-Crane |
| Country of Origin |
China |
